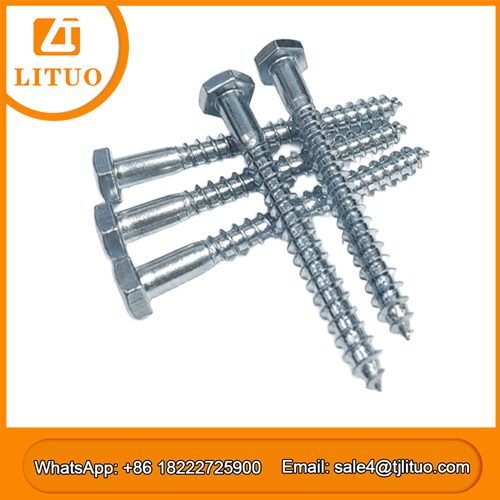

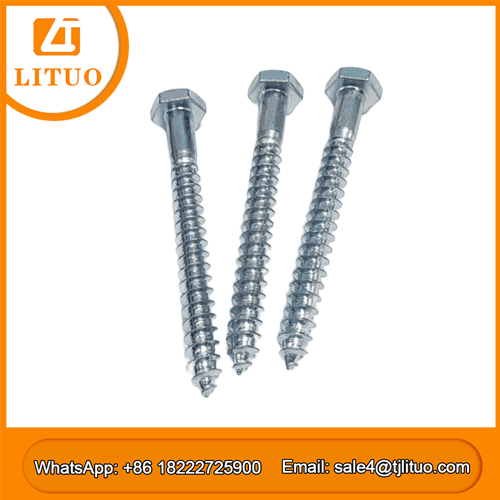

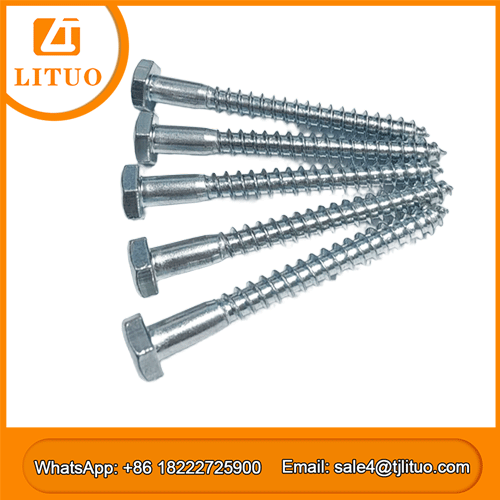

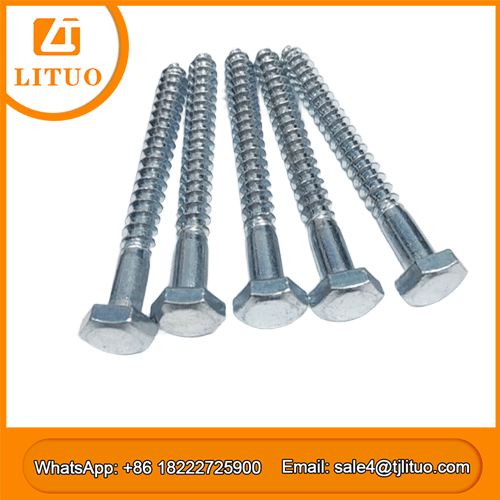

Hex Head Wood Screw
Hex Head Wood Screw Hex Head Wood Screw Hex Head Wood Screw Hex Head Wood Screw

Hex Head Wood Screw

Product Tags :
Product Attributes :
  • Name:Hex head wood screw self tapping
  • Head Type: Hex Head
  • Material: Carbon Steel
    Finish: Electro Galvanized, Hot Dipped Galvanized,Stainless Steel
    Length: From 30mm-400mm
    Head Dia: M8 (12.8mm), M10 (15.8mm), M12 (18mm), M16 (23.8mm)
    Head Height: M8 (5.5mm), M10 (6.5mm), M12 (7.5 mm), M16 (10mm)
    Drill Capacity: Pre-Drilled Timber
    Driver Type: Hex Socket – M8 (13mm), M10 (17mm), M12 (19mm), M16 (24mm)
Product Description

Hexagonal wood screws are self-tapping fasteners with external hexagonal heads specifically designed for wood. They feature high torque, strong holding power, and anti-loosening properties, allowing for direct screwing into wood for a secure connection.

Hexagonal wood screws (also known as hexagonal head wood screws) are a common type of fastener used in woodworking and construction. They combine the high tightening strength of hexagonal head bolts with the coarse thread structure unique to wood screws. The special wood screw thread has a large pitch and long lead, similar to a chip-free tap, allowing it to directly cut into wood without pre-tapping. They are suitable for fixing metal or non-metal parts into wood, or for connecting wood components. They allow for tightening without a pre-installed nut and are widely used in furniture manufacturing, building formwork, and outdoor timber structures.

The hexagonal head design can withstand higher torque than Phillips or slotted heads, reducing the risk of stripping. This is advantageous in large structures or applications requiring frequent disassembly and assembly. Common materials include carbon steel, stainless steel (such as 304, 316), and copper; stainless steel versions are corrosion-resistant and suitable for humid or harsh outdoor environments.

Recommendations: When choosing hexagonal wood screws, the material should be determined based on the usage environment: For dry indoor environments, galvanized carbon steel is suitable; for humid or outdoor environments, 304 or 316 stainless steel is recommended to prevent corrosion. Regarding tools, prepare hexagonal wrenches or sockets of the appropriate size for efficient installation.
